G3Ex310 / Ex-proof CH4 Gas Detector, 0-100% LEL, 0-10Vdc, IP66

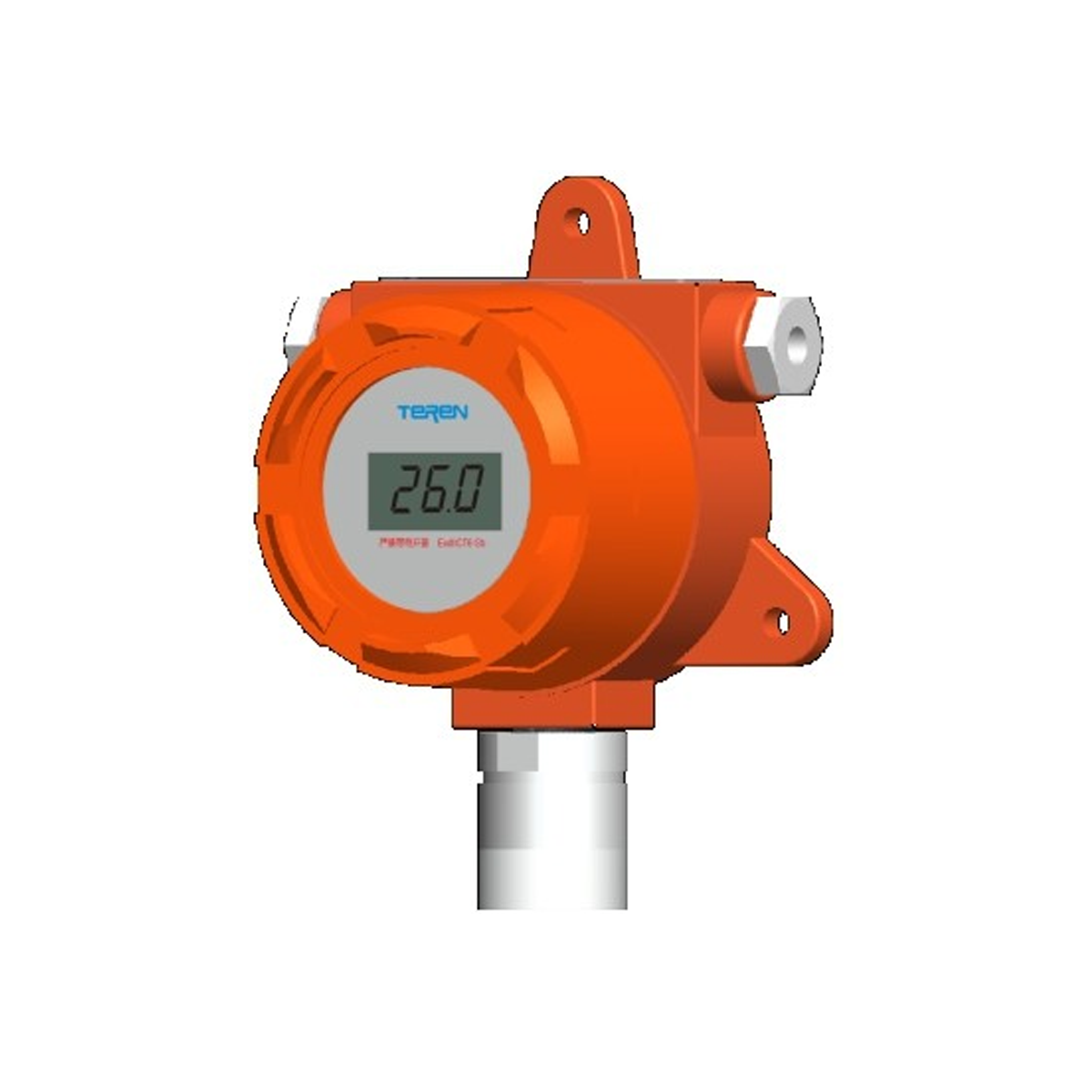

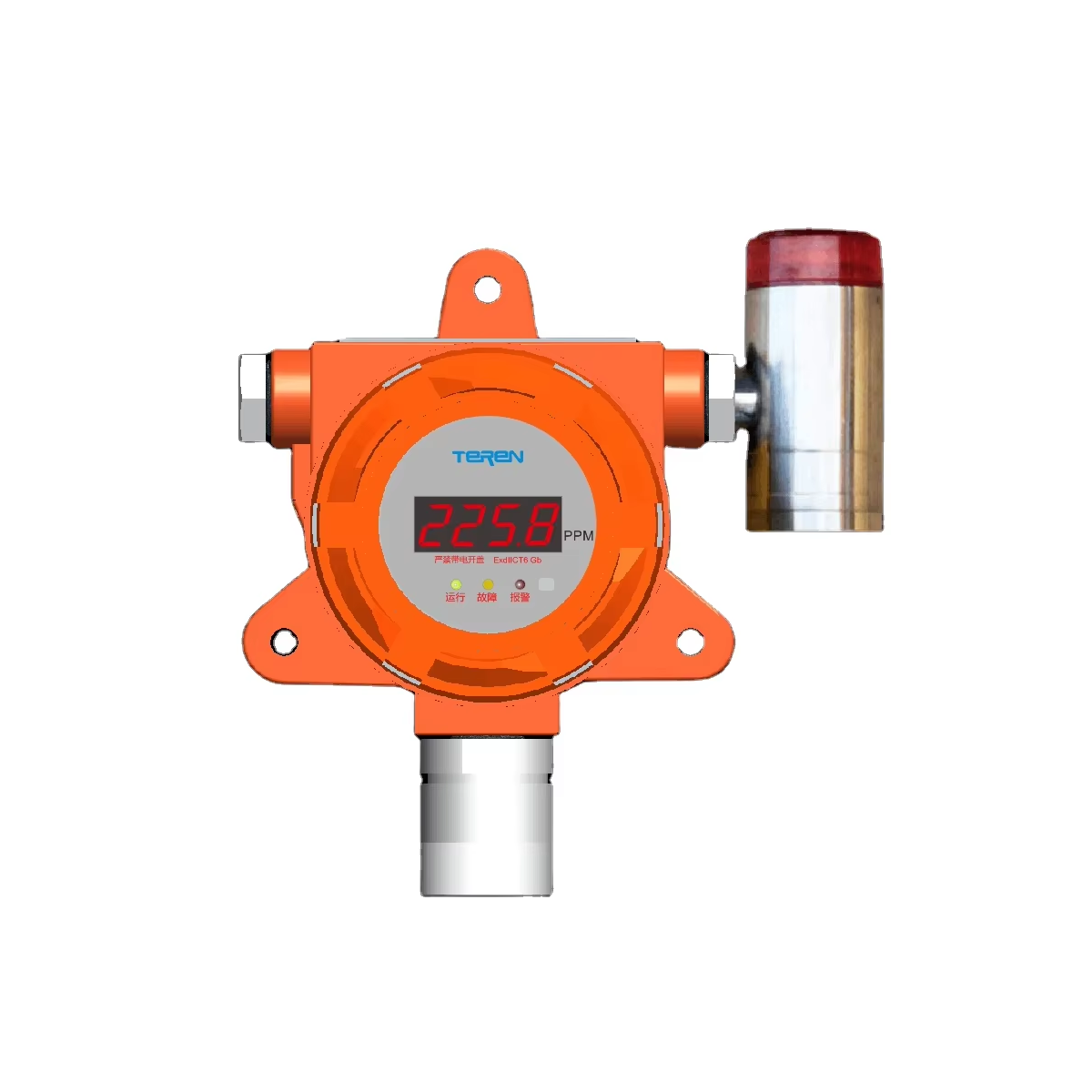

G3Ex Explosion Proof Combustible/Toxic Gas Detector

The G3Ex Gas Detector provides reliable monitoring for combustible and toxic gases. Industrial facilities need constant surveillance to ensure worker safety. This device uses a high-quality stainless steel probe to sense hazardous leaks quickly. It supports a wide power range from 18 to 30VDC for easy integration. You can find more safety solutions in our Gas Monitoring Category (Internal Link).

Rugged Features of the G3Ex Gas Detector

Safety remains the top priority in hazardous environments. This unit features a robust die-cast aluminum housing. This housing protects internal electronics from extreme conditions and impacts. It includes a stainless steel sintered mesh filter to prevent contamination. The device meets international safety standards (Outbound Link) to ensure performance in volatile atmospheres. This rugged design makes it ideal for chemical plants and oil refineries.

Versatile Output and Integration

The detector offers multiple output signals for modern control systems. You can use 4-20mA (3 wires), 0-10V, or RS485/Modbus communication. An integrated SPST relay provides an extra layer of protection. It can trigger local alarms or shut down equipment at 3A/30VDC. This flexibility makes the unit compatible with most industrial PLCs and safety controllers.

Clear Visual Feedback

The bright LED digital display shows gas concentrations in real-time. Dedicated LED indicators signal power, faults, and alarm states clearly. Operators can identify potential threats from a distance easily. The unit functions in extreme temperatures ranging from -40°C to 70°C for combustible gases. This durability makes it suitable for both indoor and outdoor installations in any climate.

Why Choose the G3Ex Gas Detector?

This detector uses premium materials for maximum durability. The stainless steel probe resists corrosion in harsh industrial zones. It works reliably in pressure environments from 86 to 106kPa. The sintered mesh filter keeps the sensor clean and accurate over long periods. Choosing this model reduces maintenance costs and prevents unexpected downtime. It ensures a safer workplace for all employees.

Technical Specifications:

• Power Supply: 18~30VDC.

• Output Signals: 010V, 420mA, or RS485/Modbus.

• Integrated Relay: SPST, 3A/30VDC.

• Display Type: Digital LED with status indicators.

• Housing Material: Die-cast aluminum with SS probe.

• Operating Humidity: 10~95% RH (Non-condensing).

• Pressure Range: 86~106kPa.
